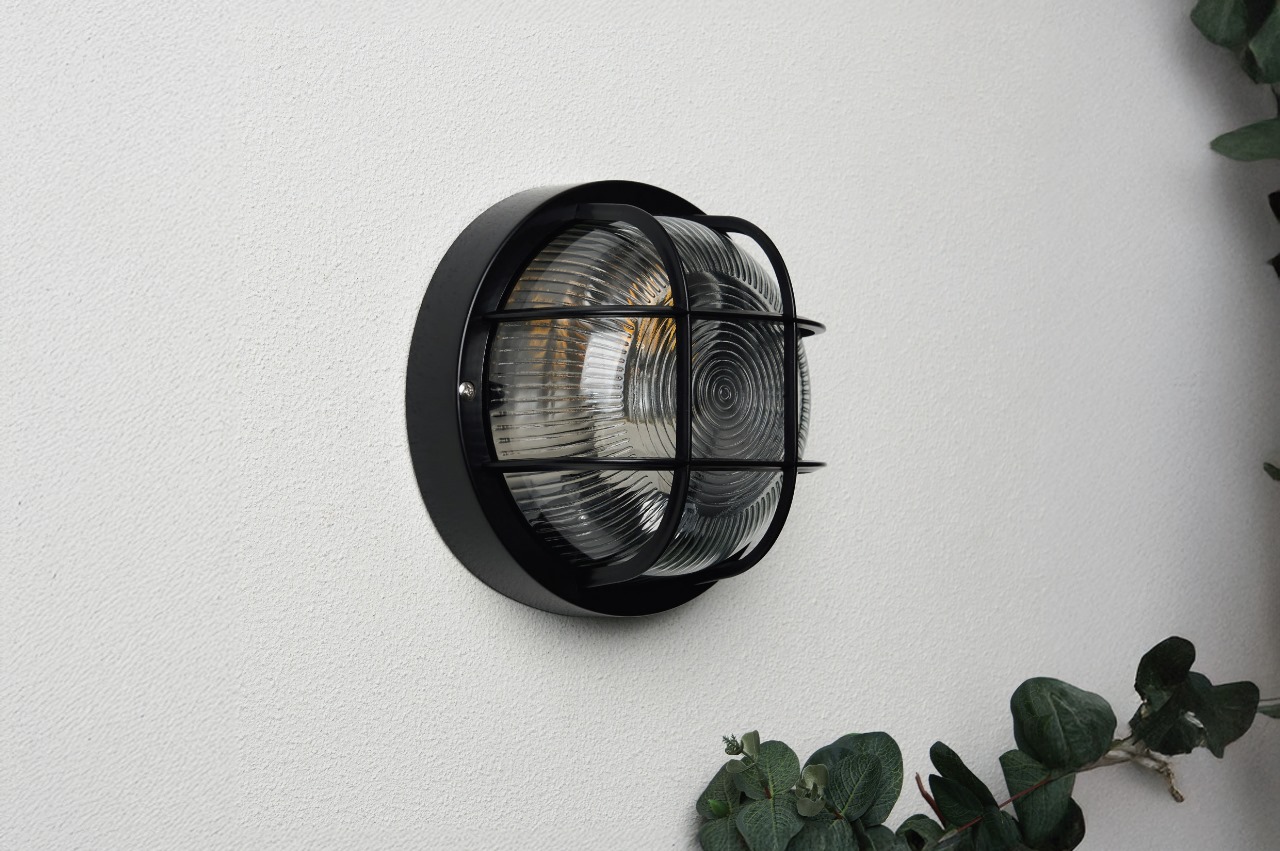

Decorative round luminaire
The luminaire is constructed from die-cast aluminium,
offering strength and durability. It is coated with
electrostatic painting for long-lasting surface protection
and visual appeal. A tempered glass diffuser or cover is
used to ensure high impact resistance and optimal light transmission.
| Installation | Surface |
|---|---|
| IP Rating | IP65 |
| Finishing Color | 01 - Black 02 - Dark grey 03 - White 04 - Matt sliver 05 - Bronze |
| Material | die-cast Aluminum |
| Diffuser material | Transparent glass |
| Reflector material | Faceted aluminum |
| Lighting source | SMD |
| lighting Emission | Direct symmetric Light emission angle (º): 127.3 |
| Power | 10W |
| Color temperature | 3000K-4000K-6500K |
| Output Lumen Flux | 1300lm |
| Beam angle | 127.3º |
| Safety class | Class III |
| Lifetime | 50000H |
| Warranty | 3 years |
| Mains Fraquncy | 20 |
| Mains Voltage | 220-240V AC |
